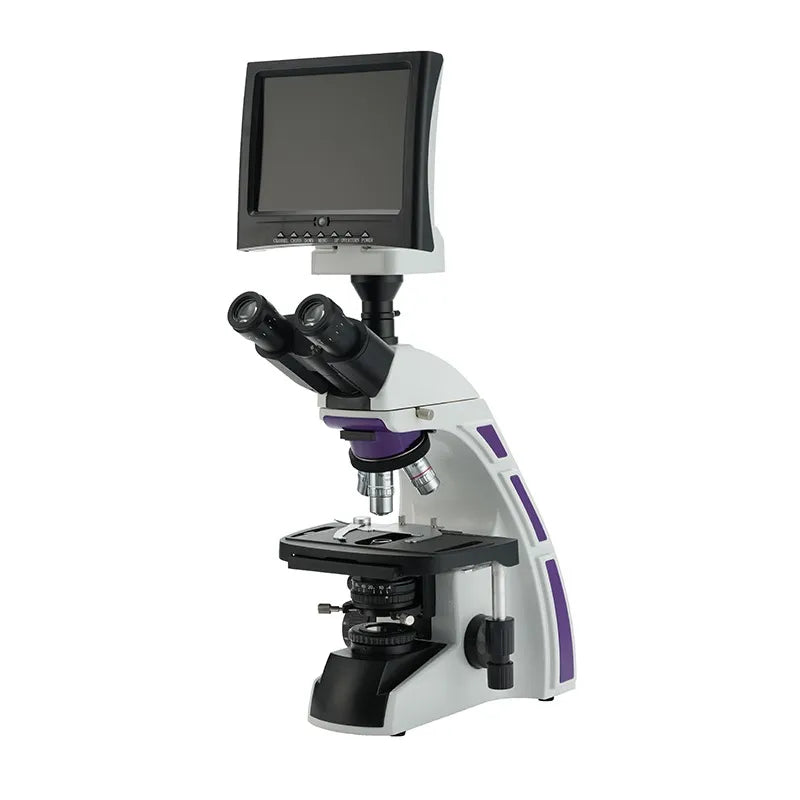

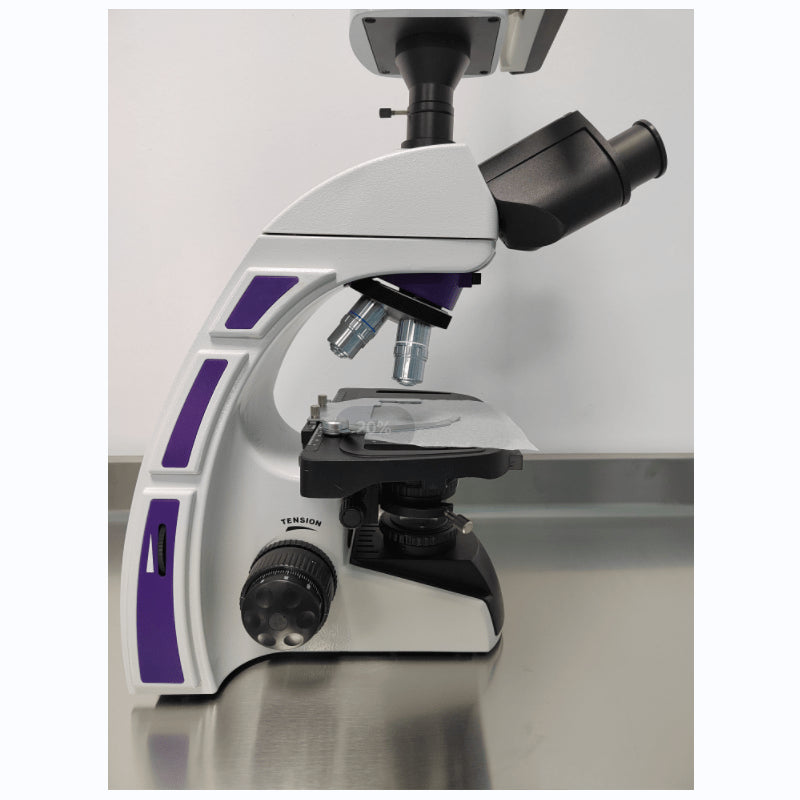

TT-2016 LCD Biological Microscope

1. The excellent appearance accord with ergonomic design
2. Integrated body design makes products maintain long-term stability
3. High quality 3W LED lamp and long time using life
4. Infinity achromatic correction optical system and common optical system can meet the different customers'requirements

Specification:
Optical System： Common optical system
View Head：Articulated Free binocular or trinocular head.nclined at 30°360° Rotatable. (Interpupillary Distance:55-75mm)
Eyepiece：PL 10x/23mm high eyepoint eyepiece, diopter adjustment +5, tubed30mm
Objective：Plan achromaic objectives4x,,10X,40X,100X
Nosepiece：Backward quardruple objective nosepiece

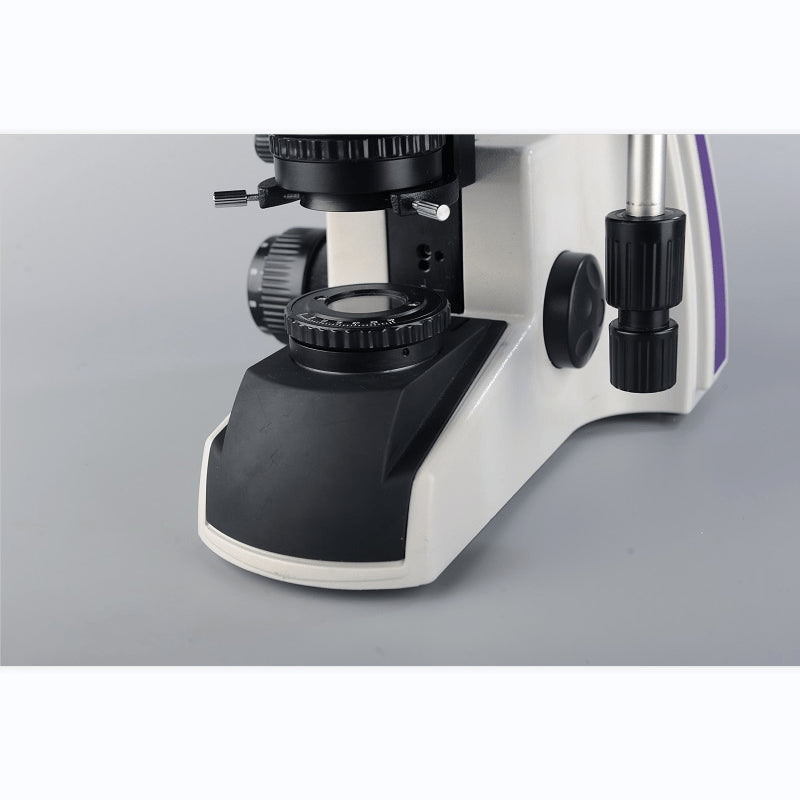

Condenser：Abbe Condenser set

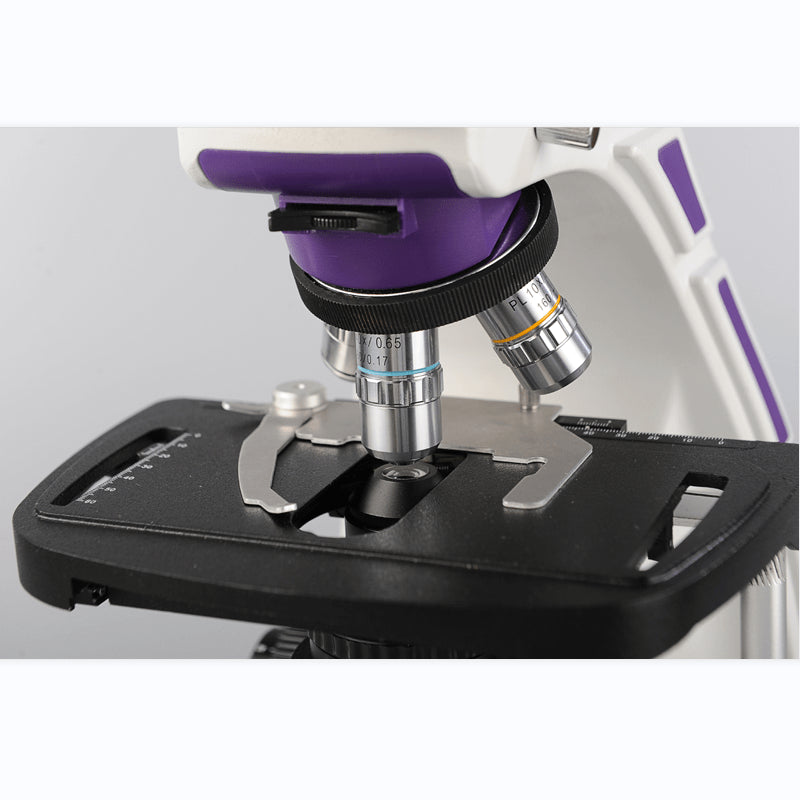

Stage：X-axis low hand position double Layers Mechanical Stage(steel wire transmission)
Stage Size: 220x148mm Moving Range:76x50mm Precision:0.Imm. Damped double slide clamp
Focusing: Coaxial Coarse & Fine Focus knobs Precision: 0.002mm
Illumination: 3W LED lamp with Kohler illumination system

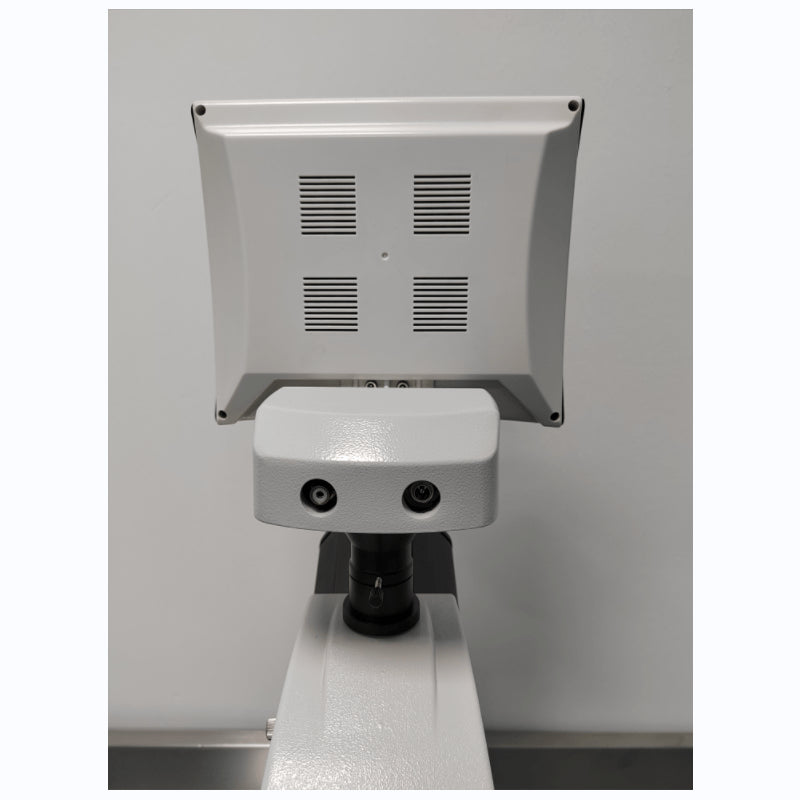

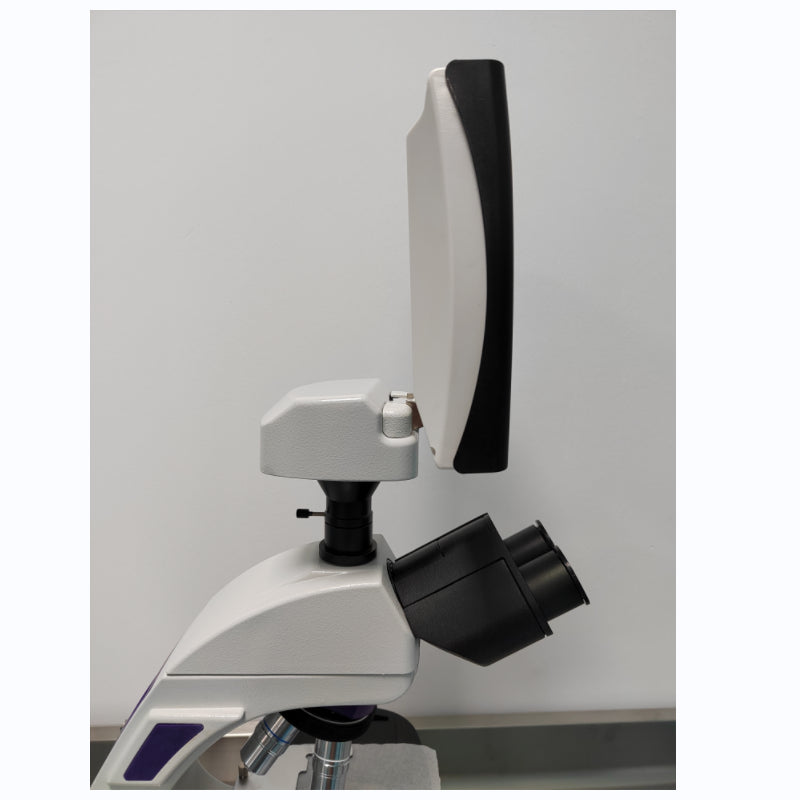

LCD: 8"color LCD, Pixels:976H)x582(v), Color System: PAL/NTSC4.43NTSC3.58/SECAM
Optical System: Infinity achromatic correction opticalsystem
Nosepiece: Backward quintuple objective nosepiece
Objective:
1. Standard Plan Achromatic objectives:4X,10X,40X,100X
2. Optional Plan Achromatic Objectives:20X,60X
3. Infinity Plan Achromatic objectives:4X,10X,20x,40x,60X,100x
Phase Contrast Accessory:
1.Dial phase contrast apparatus
2.Insert phase contrast apparatus
Dark Filed Condenser:
1.Dry darkfiled condenser
2.Oil-darkfiled condenser
