Pet medical equipment

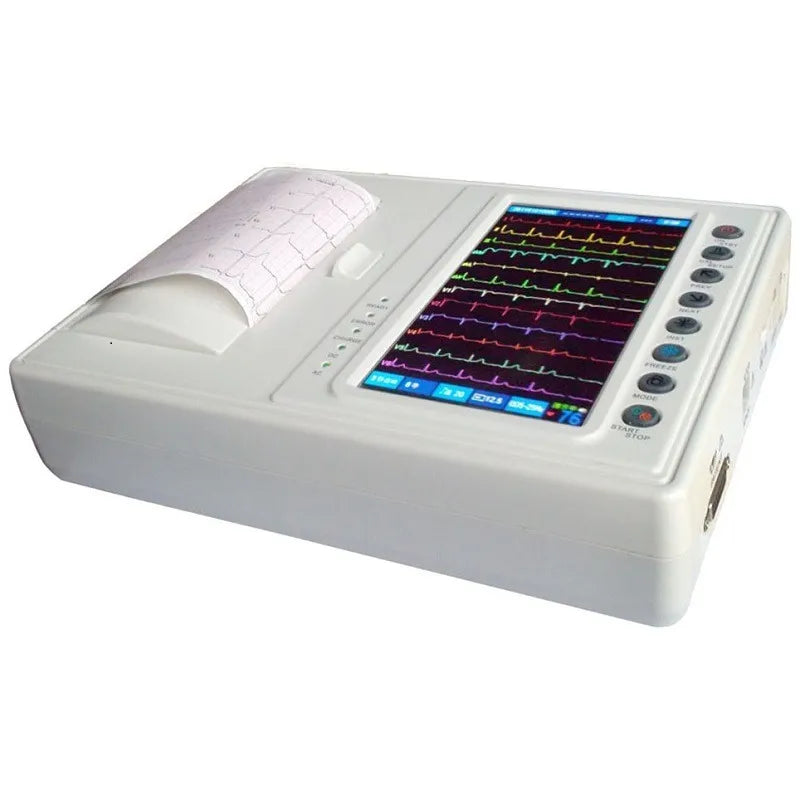

MK-1206A 6 Channel ECG
MK-1206A 6 Channel ECG
Giá thông thường
$600.00
Giá thông thường
Giá bán
$600.00
Đơn giá
trên
Đã bao gồm thuế.
Không thể tải khả năng nhận hàng tại cửa hàng
Features
*7inch 480*800 color display
* Patient name, sex,gendar and hospital name can by input by soft keyboard
*110mm*20m roll type thermal paper
* 12-lead ECG simultaneous acquisition and display on the ECG screen
* Multiple Operation models: Manual/Auto/Rhythm analysis
* 6-lead recording with a rhythm lead
* Digital filters to eliminate EMG/AC interference and prevent baseline drift.
* Lead-off detection
* Built-in rechargeable 1800mAh Li-ion battery, 2 hours continuous working
* 110-240V,50/60Hz AC power supply
* 200 patient reports save/replay
* Built-in USB/RS232 interface
| Lead | 12 leads,Standard or Cabrera, 12 leads simultaneously acquisition |
| Input circuit | Floating,Defibrillation protection |
| LCD display | 800*480 7 inch touchscreen LCD display ECG waveform, operation conditions,Time,Heart-rate,etc,support patient name,Age,Sex and Hospital name input(Optional) |
| Safety | IEC class I, type CF |
| Sampling rate | 8000 samples/Sec |
| Input dynamics | ±500mV |
| Operation Mode | automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart) |
| Filter | AC(50Hz or 60Hz, -20dB) |
| EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) | |
| Drift (0.5Hz,-3dB) | |
| CMRR | >100dB(with AC filter) |
| Input circuit current | ≤0.1μA |
| Input Impedance | ≥50Mohm |
| Time constant | ≥ 3.2 Sec |
| Frequency Response | 0.05–150Hz,-3dB |
| Noise Level | ≤15μVp-p |
| Sensitivity | 1.25; 2.5; 5; 10;20; 40mm/mV±2% |
| Calibration Voltage | 1mV±2% |
| Patient Current Leakage | <10uA |
| Protection | Protect from defibrillation and pace-making |
| Printing system | Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s |
| Printing Speed | 5; 6.25; 10; 12.5; 25; 50mm/s±3% |
| Printing Output | 3channel; 3+1 channel; 6channel; 6+1 channel |
| Paper size | 110mm*20m roll type or Z-fold thermal paper |
| Patient Cable | standard 10 core |
| Report storage | 200 reports in built-in memory, support external SD card |
| report presentation,review and re-printing. | |
| Indicator | Lead-off detectoin |
| Power Supply | 12.6V 1500mA Li-poly rechargeable battery pack (DC) |
| 220V±10%, 50Hz±2%, 75VA (AC) | |
| Fuse Specification | 2Φ5x20mm 3.15A 250V |
| Machine Dimension | 285(W)*200(D)*55mm(H) |
| Machine weight | 2.25 kg (machine only) |
| Gross weight | 3.9 kg (with accessories) |
| Carton size | 41*32*24cm(1pc), 67*44*51cm(4pcs/carton) |
