NEEDLE STIMULATOR-01
NEEDLE STIMULATOR-01
Request a Factory Price & Technical Quote
Tell us your required quantity and destination country — our biomedical team replies within 24 hours with a Proforma Invoice, spec sheet, and shipping cost. For an instant reply, message us directly on WhatsApp or Email:

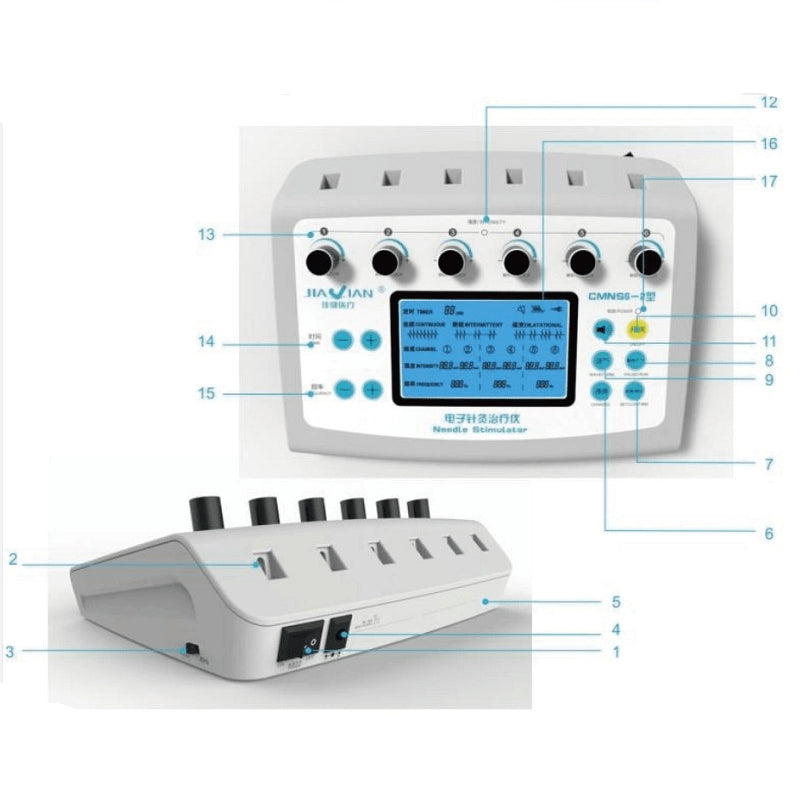

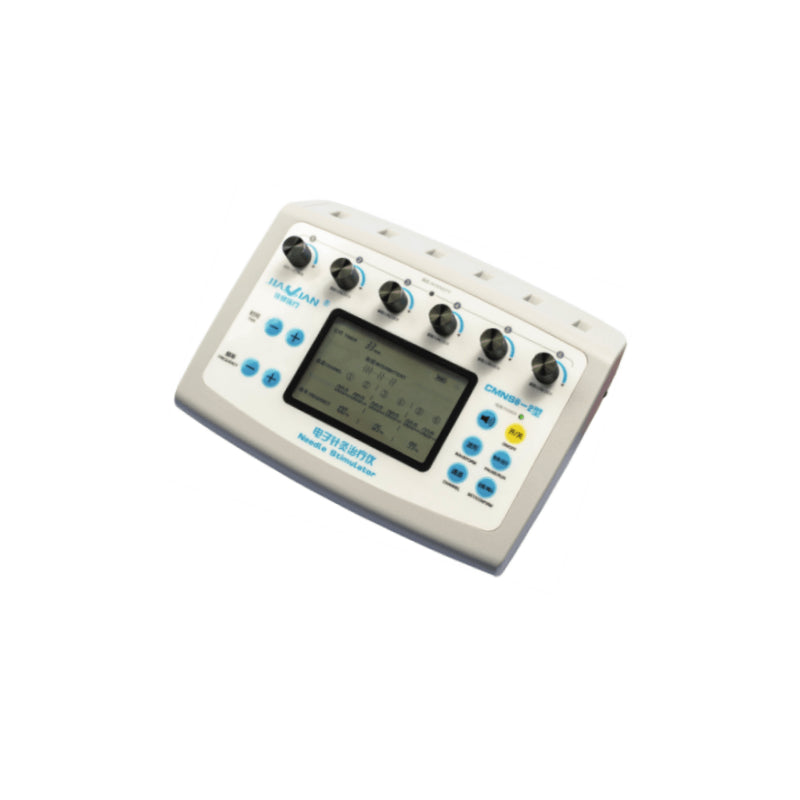

NEEDLE STIMULATOR-01 is an electroacupuncture needle stimulator supplied quote-first by PetMedTools.
LCD display
Frequency controlled by computer chip intensity digitally adjustable
Digital button,simple and convenient
Technical parameter
Output frequency: 1~100HZ
Output pulse width: 175μs
Output intensity: 0~50V(5002)
Channel: 6 channels
Pulse waveform: Biphase asymmetry triangle tip wave
Output waveform: continuous wave, intermittent wave and dilatational wave
Power source type: No 2 alkaline battery x 6/AC adaptor
Power source voltage: DC 9V/DC 9V 500mA
Related items are listed in the Chinese Traditional Rehabilitation collection. Pricing is available on request through the contact form.
Technical Specifications & Verified Parameters
| Parameter / Attribute | Verified Value / Configuration |
|---|---|
| Product / Model Designation | NEEDLE STIMULATOR-01 |
| Output frequency | 1~100HZ |
| Output pulse width | 175μs |
| Output intensity | 0~50V(5002) |
| Channel | 6 channels |
| Pulse waveform | Biphase asymmetry triangle tip wave |
| Output waveform | continuous wave, intermittent wave and dilatational wave |
| Power source type | No 2 alkaline battery x 6/AC adaptor |
| Power source voltage | DC 9V/DC 9V 500mA |
