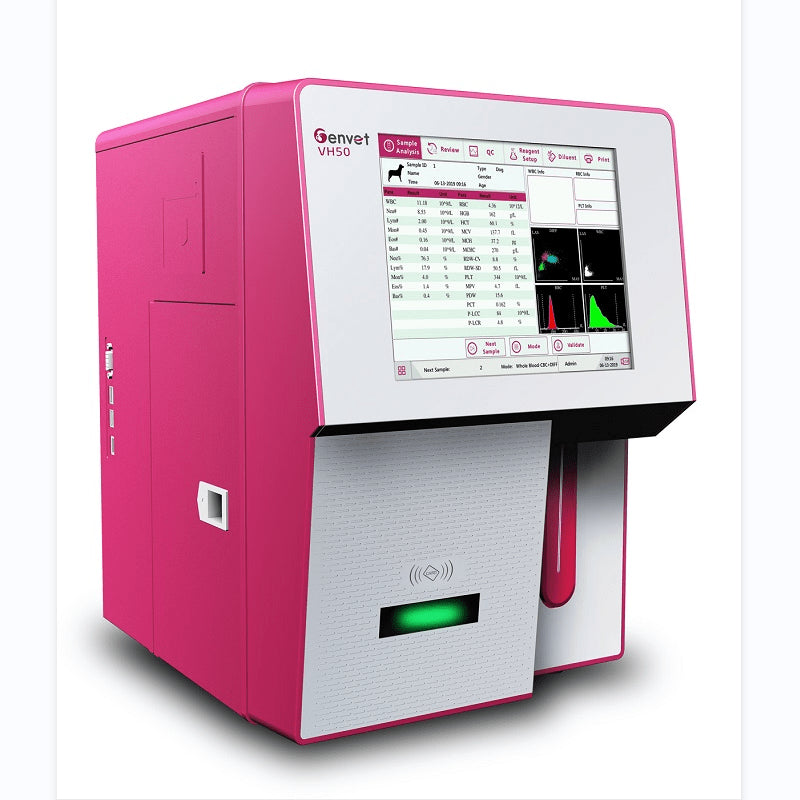

VH50-5-part Veterinary Hematology Analyzer
VH50-5-part Veterinary Hematology Analyzer
Request a Quote
Tell us the quantity and destination — we reply with a proforma invoice and payment details. We accept USD bank transfer (T/T), ACH and wire.
Chat on WhatsApp — instant replyVH50-5-part Veterinary Hematology Analyzer — VH50 5-part veterinary hematology analyzer, supplied quote-first by PetMedTools.
Assays: 26 parameters including WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC.
2 histograms for RBC and PLT
Features:
REAL 5-diff hematology analyzer
60 samples per hour
Tri-angle Laser scattering and sheath flow for WBC differentiation and counting
26 parameters + 4 scatter-grams + 2 histograms
Sample mode: Whole blood, pre-diluted
20μl whole blood
Built-in 10.4-inch TFT touch screen
Support: Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Monkey, Tiger, Dolphin, Pig, Camel, Ferret.(special algorithm)
Built-in printer and barcode scanner
Specifications:
4 scattergrams for WBC differential
Throughput : 60 samples per hour
Calibration: Manual and auto calibration
Quality control: 3 level QC, LJ graph, XB graph
Reagents:
3 Reagent (2 Lyse + 1 Diluent)
1 Probe cleanser for maintenance
All-in-one Solution:
Built-in printer
Built-in barcode scanner (optional)
Built-in card reader
Interface:
4 USB ports, 1 LAN port
HL7 protocol, support LIS
Storage:
60,000 sample results with scatter-grams and histograms
Power:
AC 100-240V, 50/60±1Hz
Dimension
430mm×350mm×435mm (L×W×H)
Weight
28KG
Related buying guides
If you are comparing products or category options here, use the main buying guides below to understand the broader purchasing logic before requesting a quote.
Pricing is available on request through the contact form.
Technical Specifications & Verified Parameters
| Parameter / Attribute | Verified Value / Configuration |
|---|---|
| Product / Model Designation | VH50-5-part Veterinary Hematology Analyzer |
| Assays | 26 parameters including WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC. |
| Sample mode | Whole blood, pre-diluted |
| Support | Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Monkey, Tiger, Dolphin, Pig, Camel, Ferret.(special algorithm) |
| Throughput | 60 samples per hour |
| Calibration | Manual and auto calibration |
| Quality control | 3 level QC, LJ graph, XB graph |
